Konektor Connector XLR Female Neutrik NC3FXX / NC3MXX / NC3FXX-B /NC3MXX-B Original

Description

Ready Stock!!!

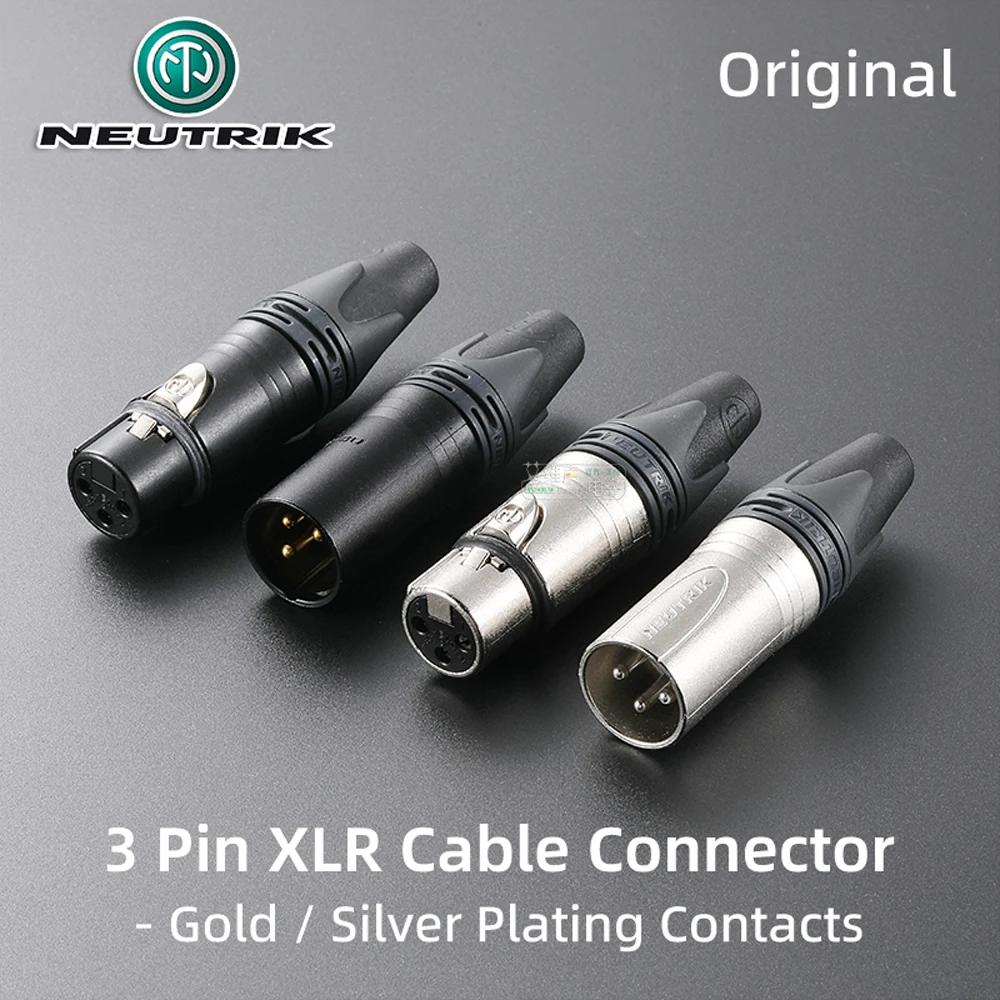

Konektor Connector XLR Female Neutrik NC3FXX / NC3MXX / NC3FXX-B /NC3MXX-B

Cocok untuk kabel microphone.

Merk : Neutrik

Harga per pcs (Harap disesuaikan varian, jangan catatan)

kesalahan pembelian tidak dapat ditukar.

Spesification :

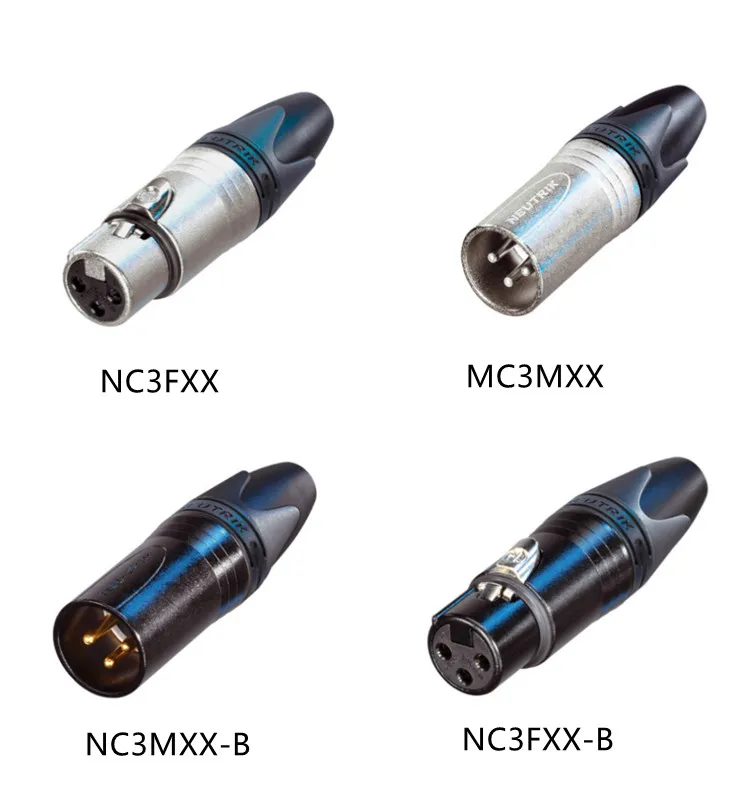

– Varian : NC3FXX / NC3MXX / NC3FXX-B /NC3MXX-B
– Connection Type : XLR
– Gender : Male and female
– Plating : Gold/Silver
– Capacitance between contacs : <= 4pF
– Contact Resistance <= 3m(ohm)
– Dielectric strength : 1,5 kVdc
– Insulation resistence : >10Gohm (Initial)
– Rated current per contact : 16A
– Rated voltage : <50V
– Lifetime : >1000 matching cycles

Features & Benefits
Unique cage design of female contact for low contact resistance and high integrity
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Female connector with improved solid metal latch which is larger and easier to handle
Additional ground spring contacts for better shell ground continuit
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design – valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage

Note:This link only includes XLR connectors,not cables.

Penting diperhatikan:
– Garansi 7 Hari replace.
– Wajib memberikan bintang 5 utk mengaktifkan Garansi.
– Untuk klaim garansi, ongkir ditanggung pembeli sepenuh nya.
– Silahkan tanyakan pada kami jika terdapat kendala, komentar atau ulasan negatif akan menghanguskan Garansi.
– Membeli berarti setuju ketentuan diatas
Terima Kasih.
