Description

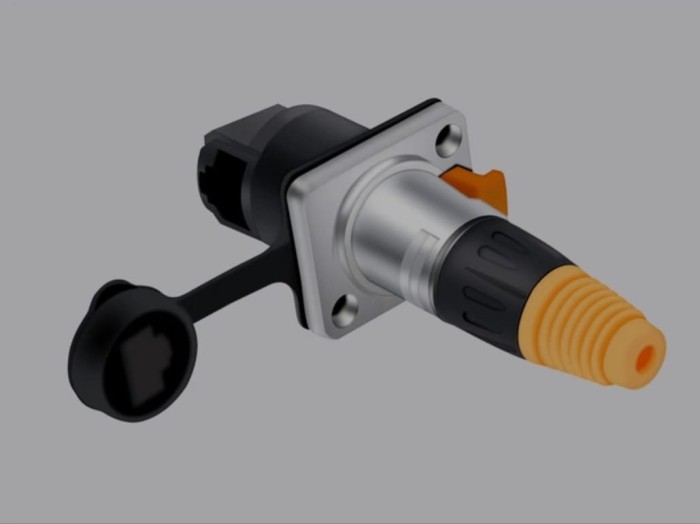

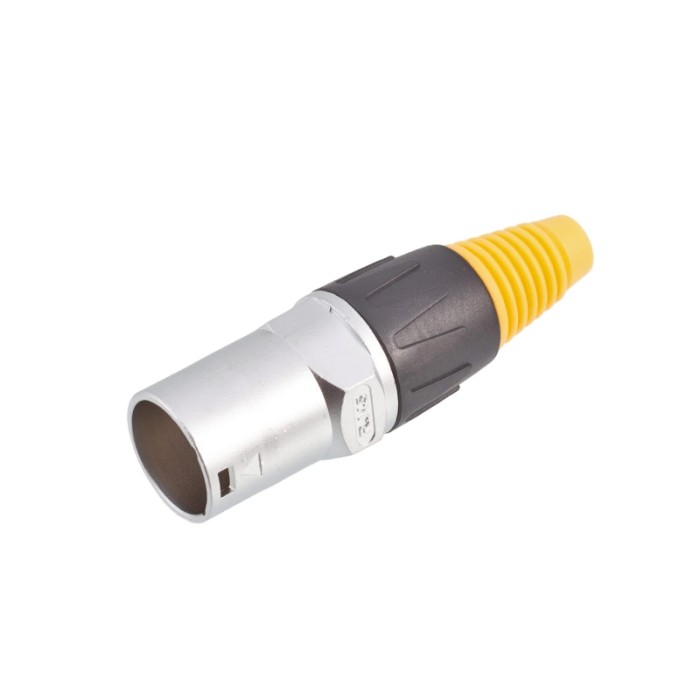

Konektor / Jack Ethercon RJ45
Harga per pcs (Harap pilih variant, jangan catatan)
Harap perhatikan posisi lubang RJ45 konektor female di gambar, posisi lubang model samping atau L. Kesalahan pembelian tidak dapat di tukar.
Spesifikasi :
Connecting mode: Plug/unplug,
Protection level: IP65
Diameter range: Φ5.5mm ~Φ7mm
Contact diameter×Qty: 8
Current rating(A): 1.5A
Operating voltage(AC.V.rms): 500V
Withstand voltage(AC.V)1min: 2500V
Contact resistance: <1mΩ
Insulation resistance: >500MΩ
Durability: ≥500 mating&unmating cycles
Temperature rating: -40°C~80°C
Method of connecting cable: Solder
Prevent the combustion level: UL94-V0
Temperature rise: 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.
Penting diperhatikan:
– Garansi 1 bulan replace.
– SIlahkan hubungi kami jika terdapat kendala.
– Syarat dan Ketentuan Berlaku
Terima Kasih
