Novastar LED Video Processor All-in-One Controller VX2000 Pro

Description

Ready Stock !!!

Bukan barang PO

Ready di gudang !

LED Video Processor All-in-One Controller VX2000 Pro

The VX2000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 20 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 13 million pixels, the VX2000 Pro can output at a maximum width of 16,384 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.

Spesification :
A comprehensive range of input connectors
– 1x DP 1.2

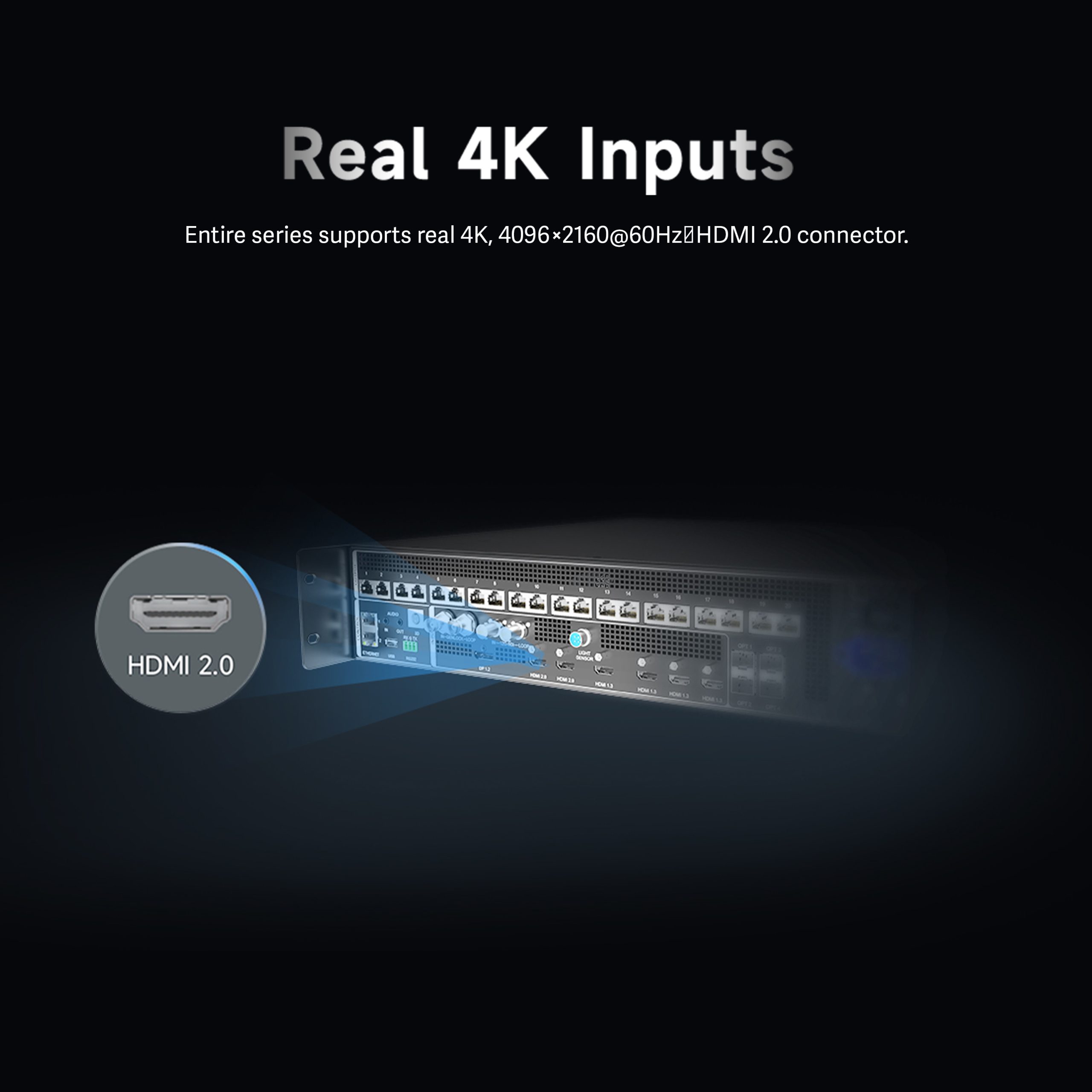

– 2x HDMI 2.0
– 4x HDMI 1.3
– 2x 10G optical fiber port (OPT 1 & OPT 2)
– 1x 12G-SDI (IN & LOOP)

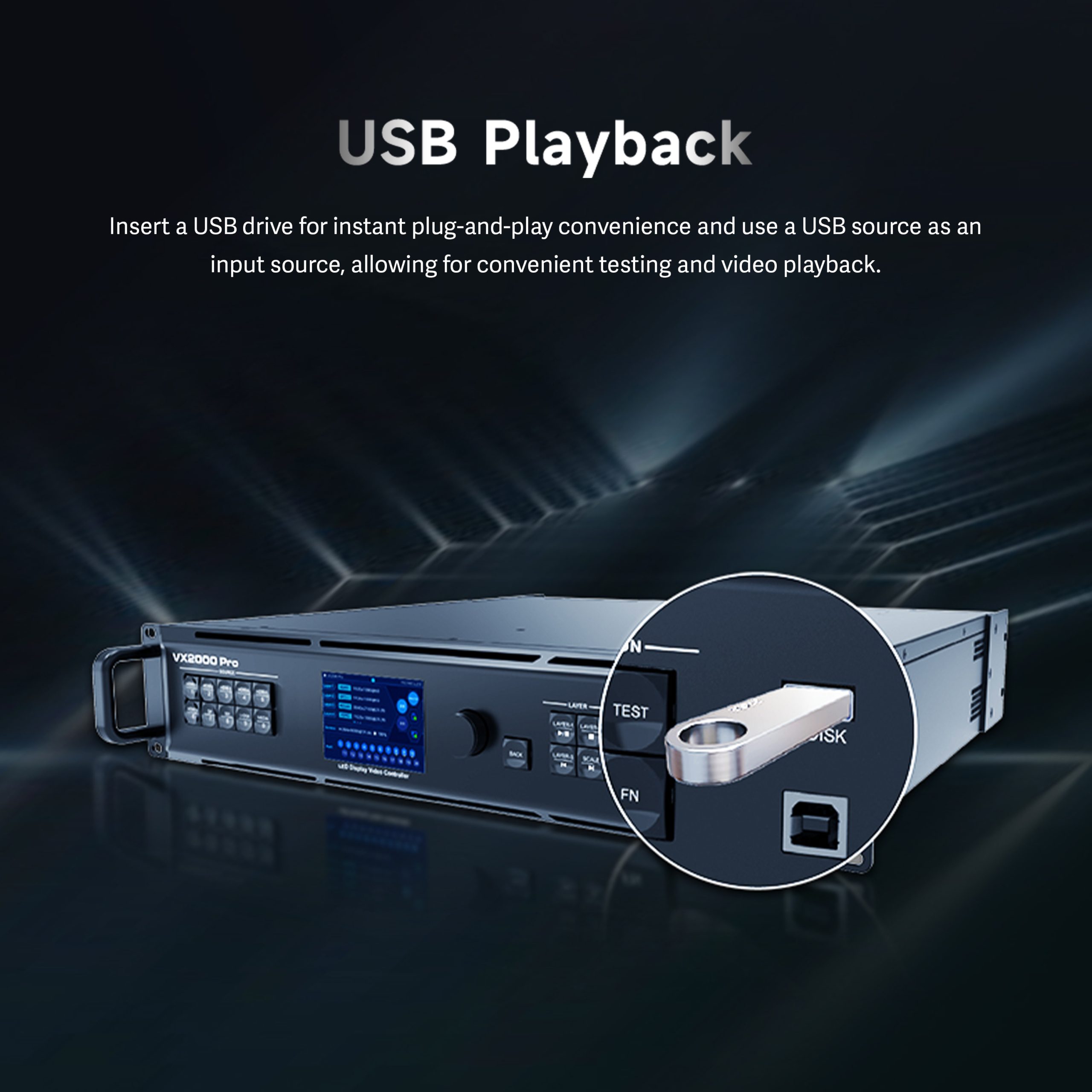

– 1x USB 3.0 (Play images or videos saved in a USB drive.)
Output connectors
– 20x Gigabit Ethernet ports

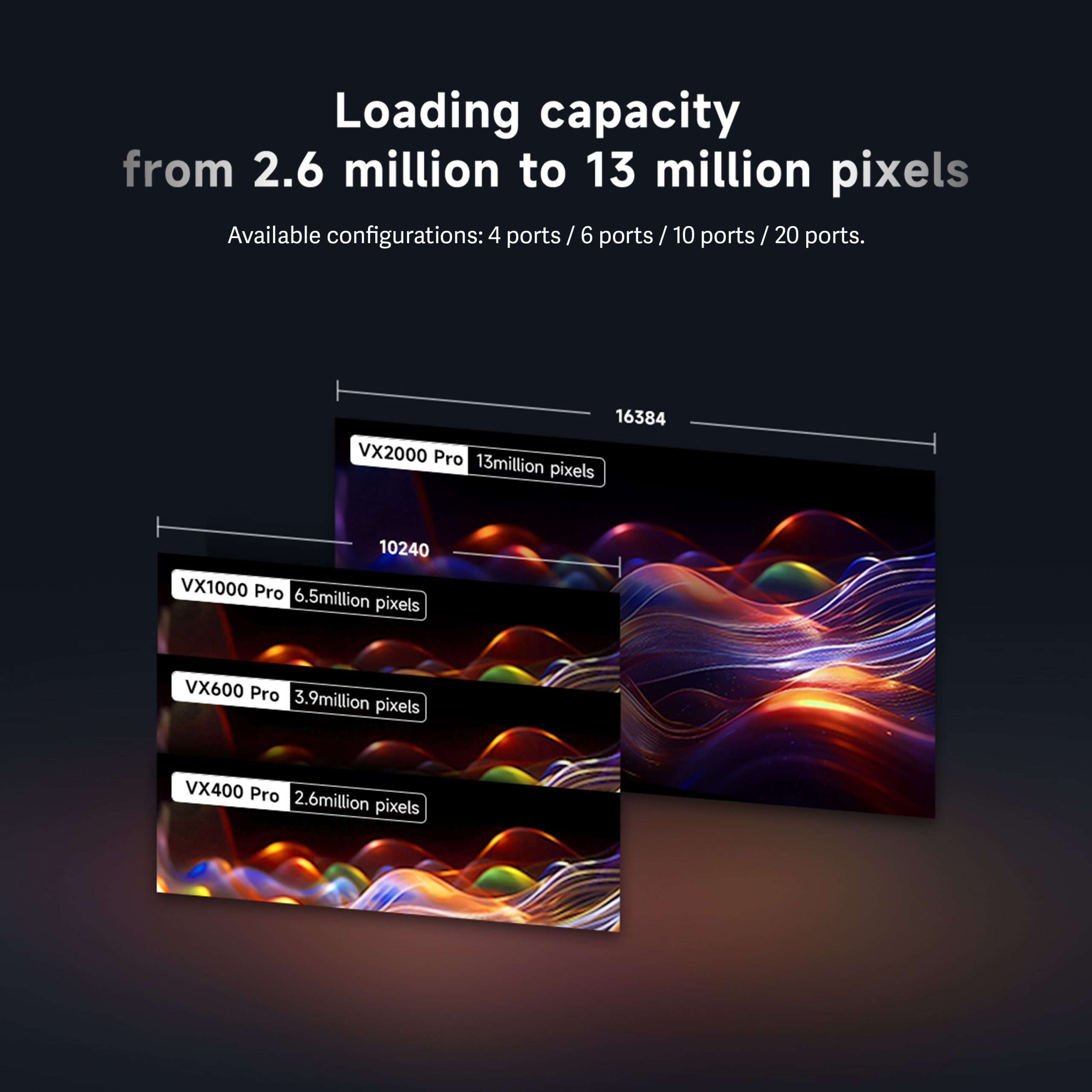

A single device supports up to 13 million pixels, delivering a maximum width of 16,384
pixels and a maximum height of 8192 pixels.
– 4x Fiber outputs
OPT 1 and OPT 2 send the output on Ethernet ports 1-10 and 11-20 respectively.
OPT 3 and OPT 4 copy or back up the output on Ethernet ports 1-10 and 11-20
respectively.
– 1x HDMI 1.3
For monitoring display. The monitoring image definition supports Smooth and HighDefinition.
– 1x 3D connector
Directly connect a third-party 3D emitter.
Self-adaptive OPT 1/2 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1/2 can be used as either an input or output
connector, depending on its connected device.
HDMI mosaic
– Supports mosaicing of two HDMI 2.0 inputs or four HDMI 1.3 inputs.
– Max. mosaicing resolution: 4K×2K
Fiber input mosaic
The input source connected through OPT 1/2 can be used either independently or combined
to create a mosaic input source.
Audio input and output
– Audio input accompanied with HDMI and DP sources
– 3.5 mm independent audio input and output
– Adjustable output volume
Easy preset saving and loading
– Up to 256 user-defined presets supported
– Load a preset by simply pressing one button.
– Save, overwrite and delete a preset.
– Preview the layer layout saved in the preset.
Multiple layer display
– Supports 12*2K×1K layer resources.
Users can create layers in three different specifications 4K×2K, 4K×1K, and 2K×1K.
These layers will use 4x, 2x, and 1x 2K layer resources respectively, depending on the
capacity of the input source connector used to open the layers.

Packing List :
1x Power cord
1x Ethernet cable
1x HDMI cable
4x Silicone dustproof plugs
1x USB cable
1x Phoenix connector
1x Quick Start Guide
1x Certificate of Approval
1x Safety Manual

Penting diperhatikan :
– Garansi 6 bulan service (tidak termasuk human error, rusak fisik, terkena air dsb)
– Wajib memberikan bintang 5 untuk mengaktifkan garansi.
– Untuk klaim garansi, ongkir ditanggung pembeli sepenuh nya.
– Membeli berarti setuju ketentuan diatas.
Terima Kasih.
