Novastar LED Video Processor Fiber Optic Converter CVT10-S

Description

Ready Stock !!!

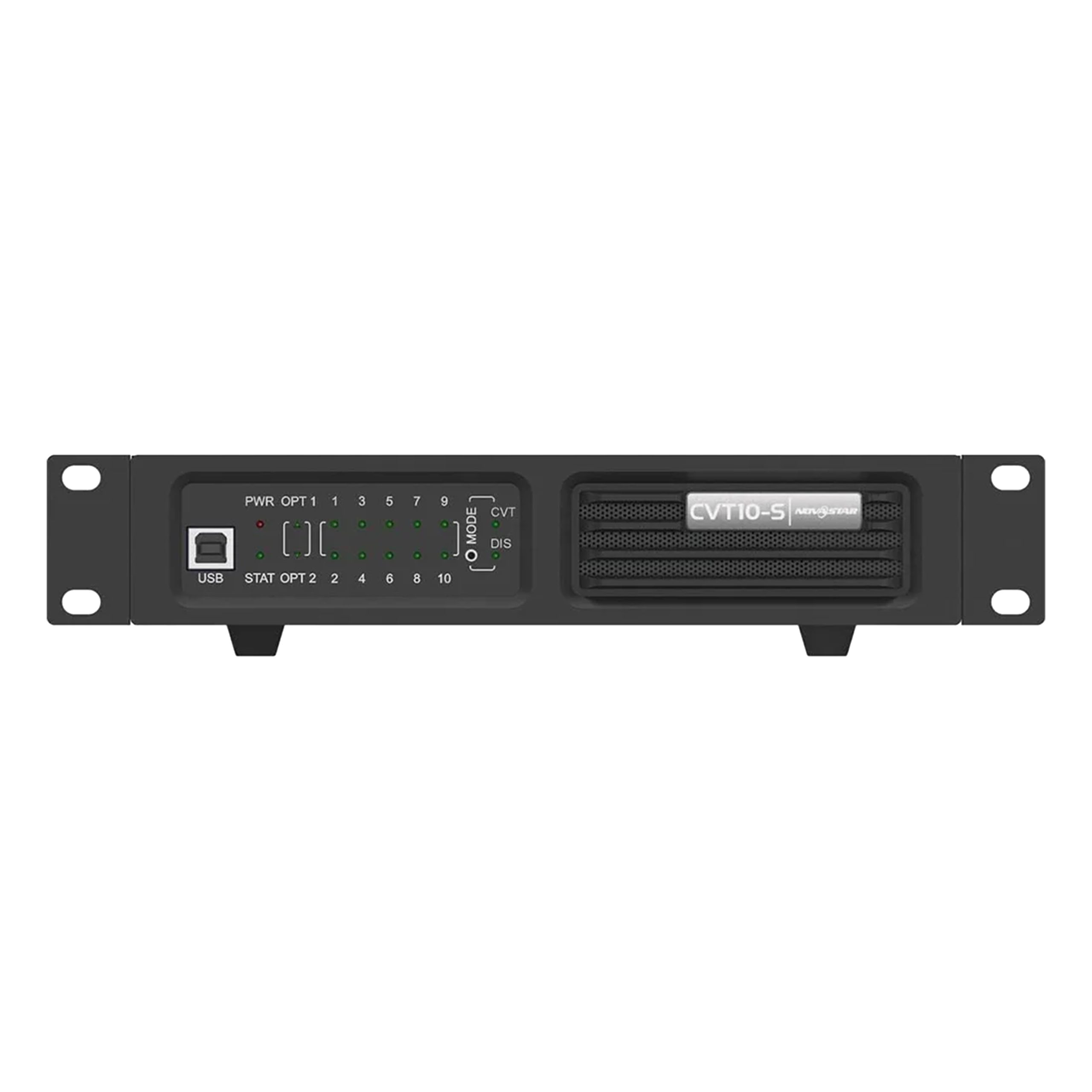

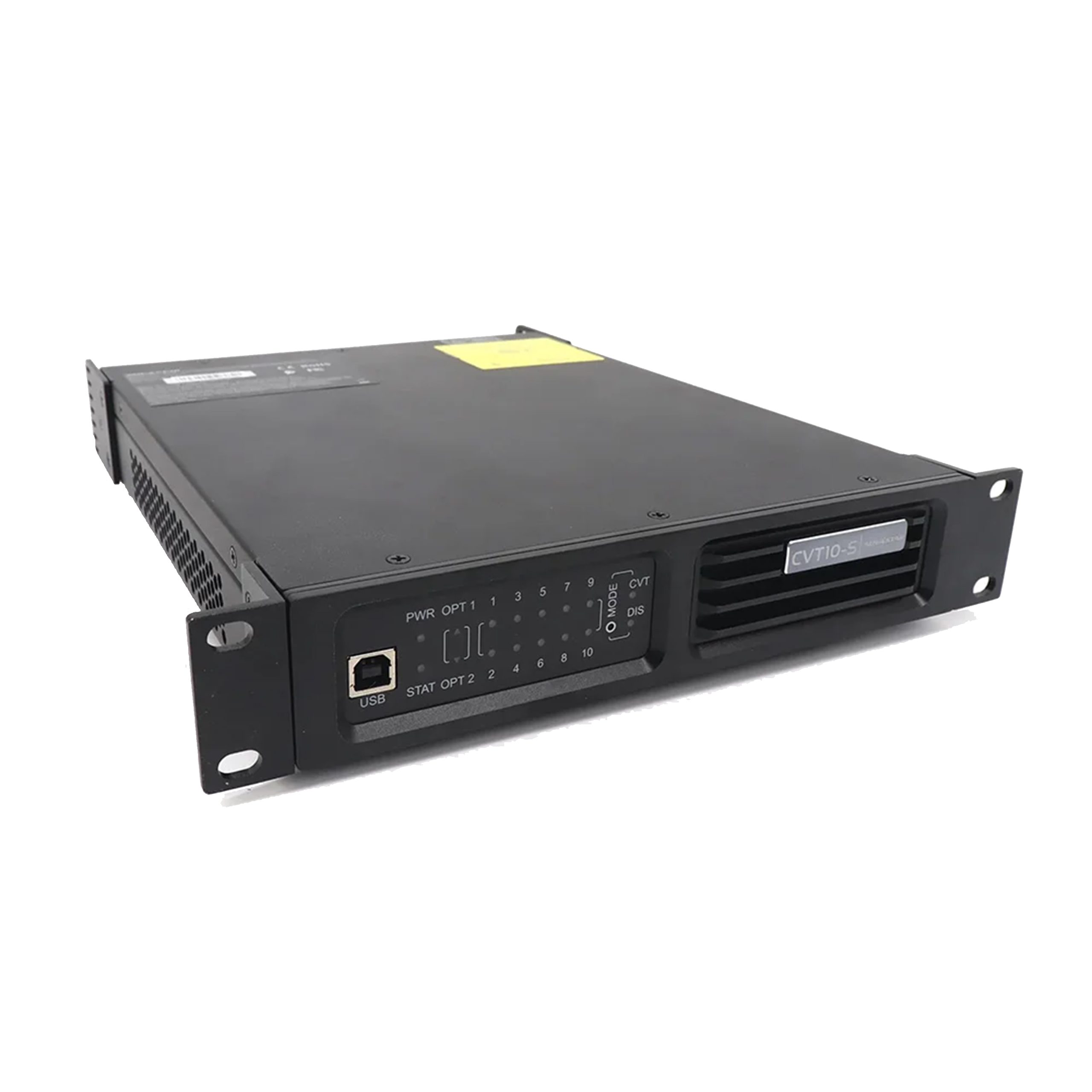

Novastar LED Video Processor Fiber Optic Converter CVT10-S

The NovaStar CVT-10-S offers a cost-effective method of bridging long distances when transmitting signals.

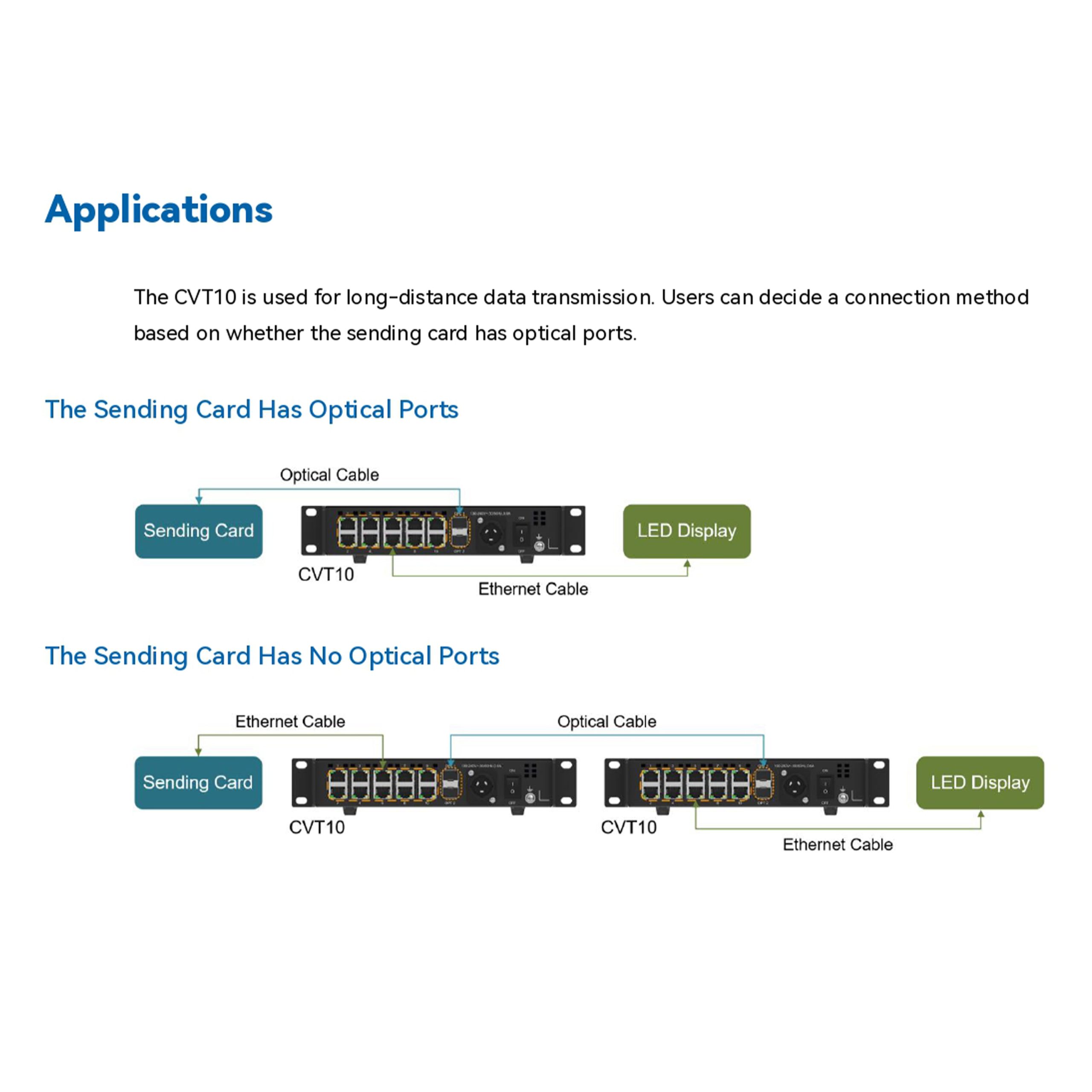

The CVT10 fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The CVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.

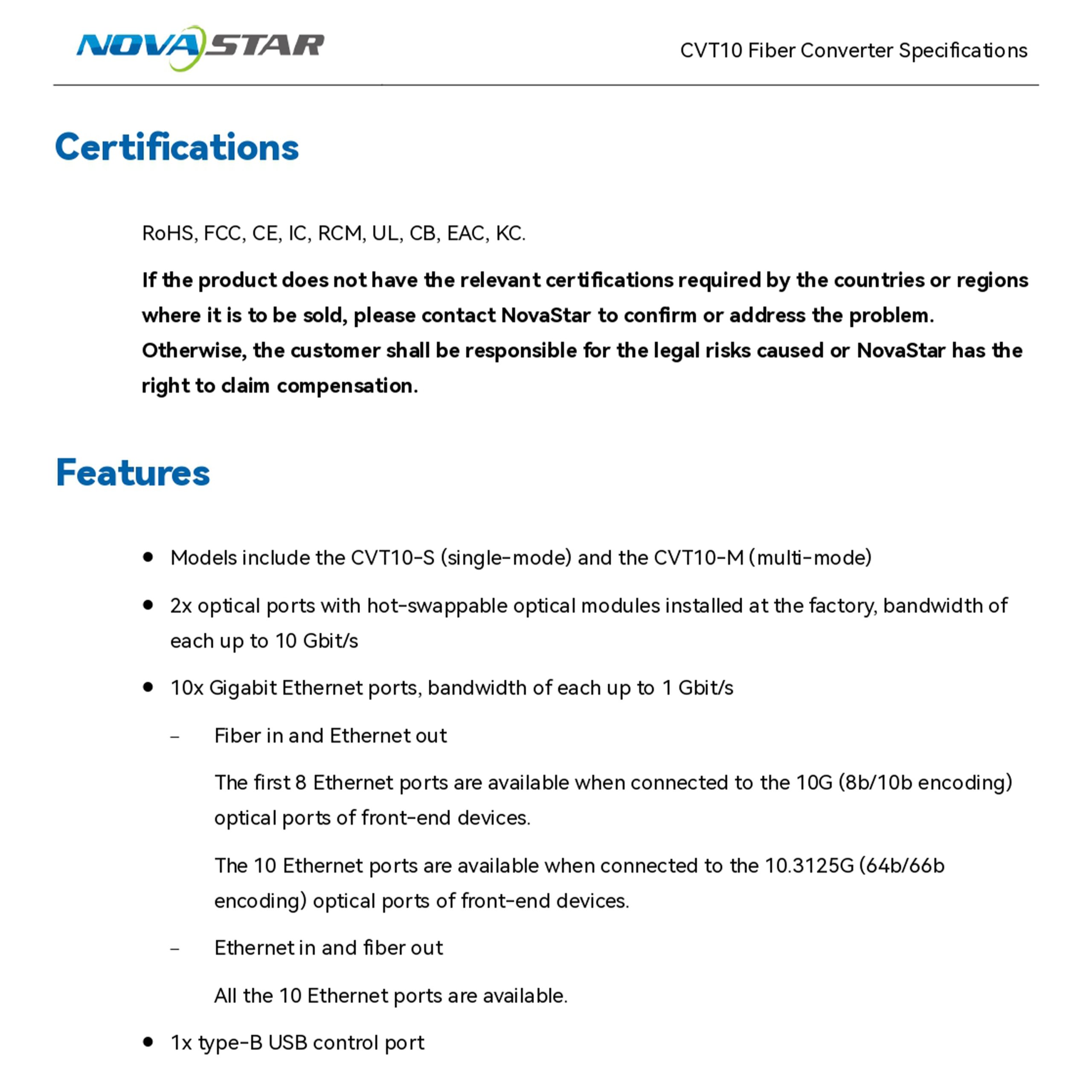

Spesification :
- Models include the CVT10-S (single-mode)
- 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s

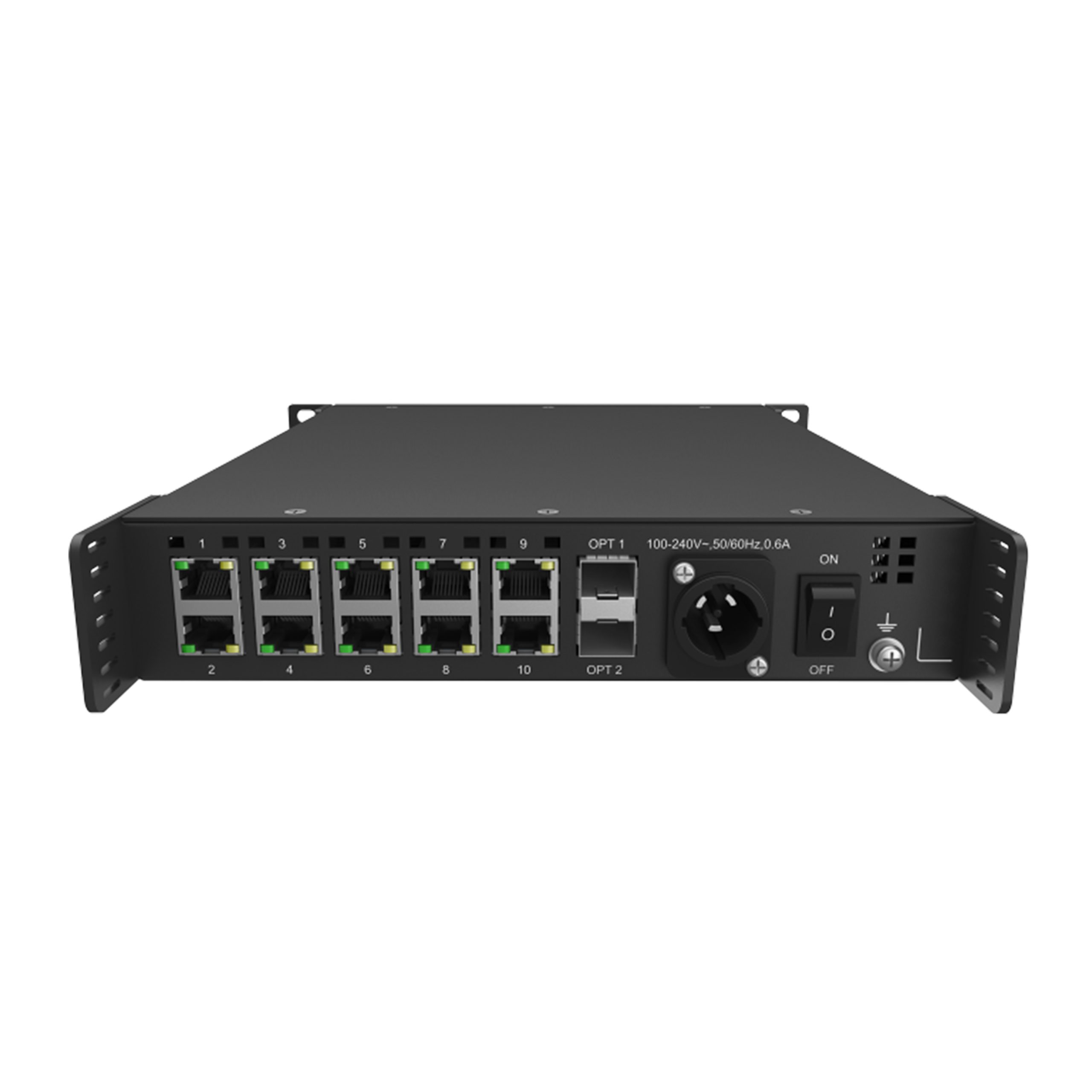

- 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
– Fiber in and Ethernet out
– If the input device has 8 or 16 Ethernet ports, the first 8 Ethernet ports of the CVT10 are available.
– If the input device has 10 or 20 Ethernet ports, all the 10 Ethernet ports of the CVT10 are available. If Ethernet ports 9 and 10 are found unavailable, they will be available after upgrading in the future.
– Ethernet in and fiber out
– All the 10 Ethernet ports of the CVT10 are available.

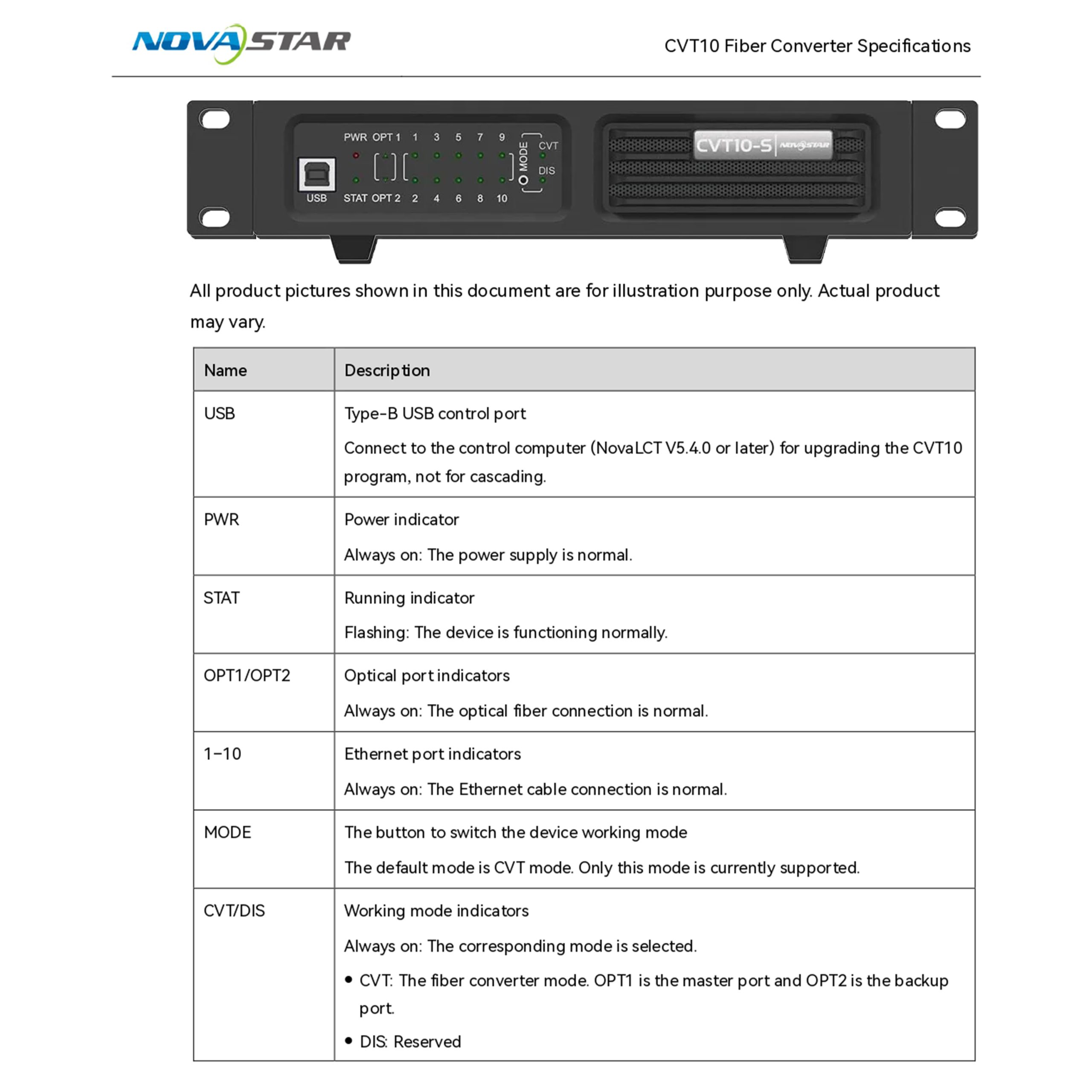

– 1x type-B USB control port

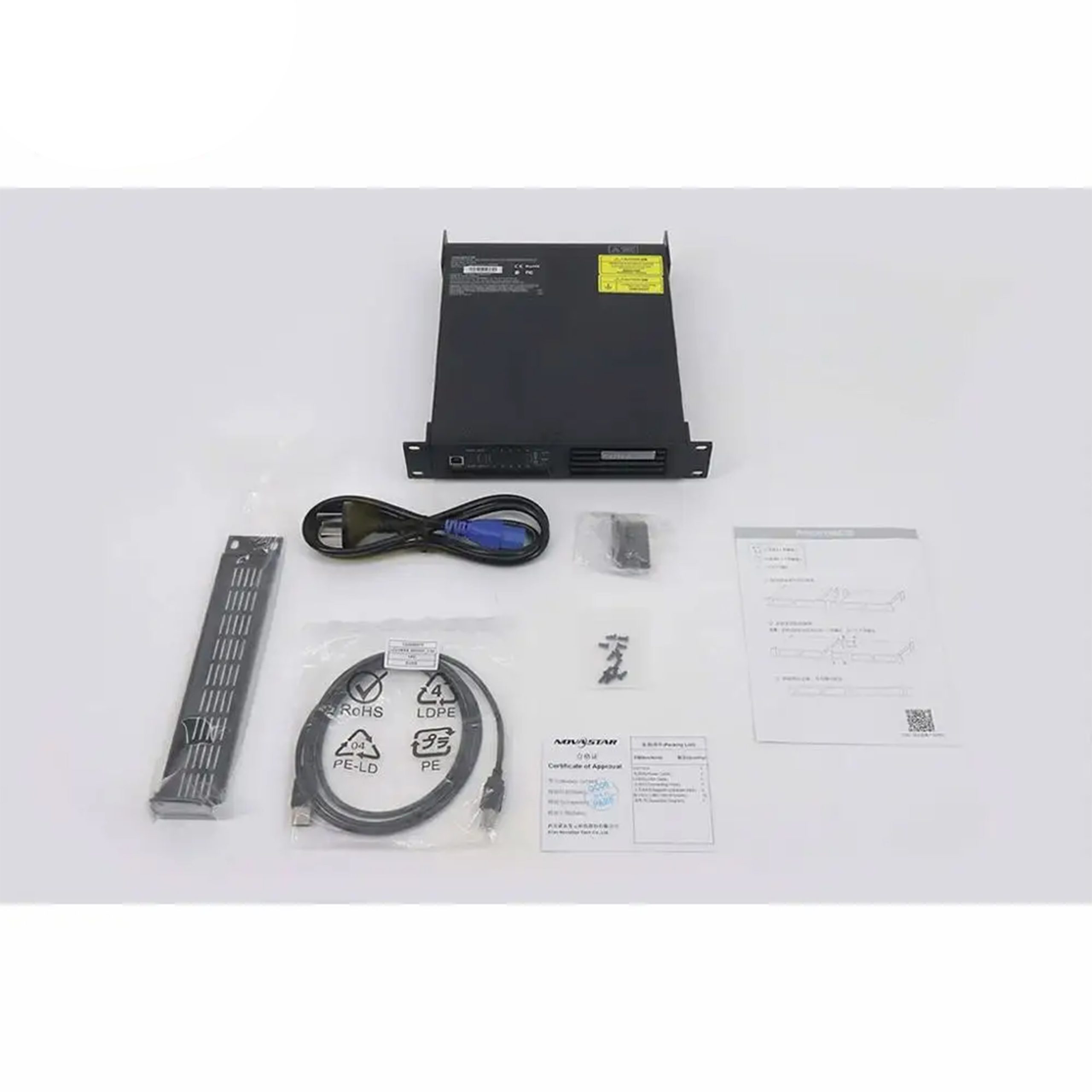

Packing List :
1x Power cord, 1x USB cable
1x Supporting bracket A (with nuts),
1x Supporting bracket B(without nuts)
1x Connecting piece
12x M3*8 screws
1x Assembling diagram
1x Certificate of approval

Penting diperhatikan :
– Garansi 6 bulan service (tidak termasuk human error, rusak fisik, terkena air dsb)
– Untuk klaim garansi, ongkir ditanggung pembeli sepenuh nya.
– Wajib memberikan bintang 5 untuk mengaktifkan garansi.
– Membeli berarti setuju ketentuan diatas.
Terima Kasih
